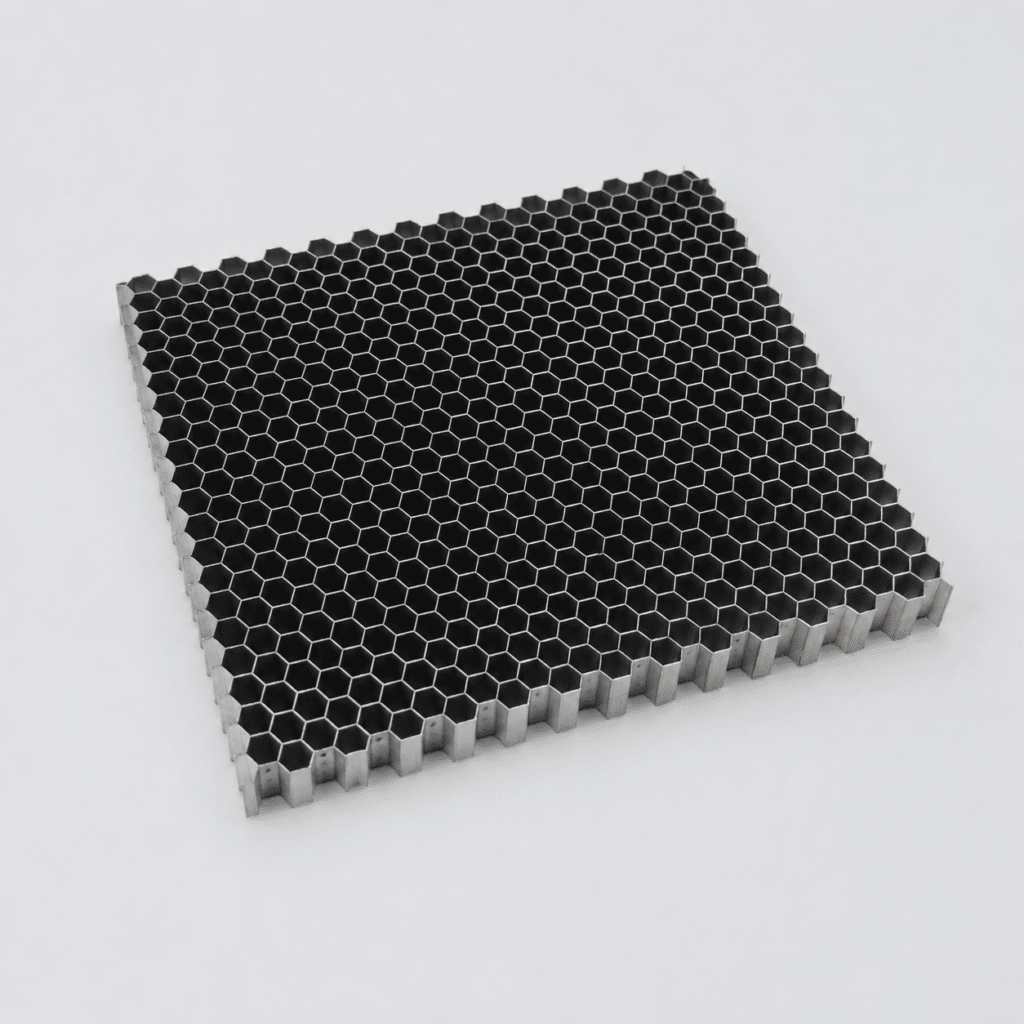

Stainless Steel Honeycomb Core
Stainless Steel Honeycomb Core is designed for harsh industrial environments where strength, heat resistance, corrosion resistance, and long service life are important. It is often selected for applications that require more durability and temperature stability than aluminum, paper, or plastic honeycomb materials.
Typical applications include airflow straighteners, ventilation grilles, filtration systems, EMI shielding panels, heat-resistant structures, corrosion-resistant components, and industrial equipment. Stainless steel grade, cell size, cell wall thickness, finished dimensions, and surface treatment options can be selected according to performance and application requirements.
For Project Evaluation
Send the required dimensions, quantity, application, and drawings. Our team will review material selection, processing feasibility, and quotation details.
Key Features
Stable Geometry, Flexible Specifications, Reliable Processing
- Excellent heat resistance
- Good corrosion resistance
- High durability in harsh environments
- Good dimensional stability
- Conductive metallic cell structure
- Strong resistance to deformation
Technical Data
Honeycomb Core Specifications
Review the available material, cell, thickness, density, dimensional, and supply-form parameters for this honeycomb core.
| Parameter | Value | Note |
|---|---|---|
| Product Form | Honeycomb Core | Product category |
| Material Specification Set | Stainless Steel Honeycomb Core | Core material family |
| Supply Form | Sheet | Available according to order requirements |
| SS Grade | 304 / 316L | |
| Cell Size | 6mm/8mm/10mm/15mm.25mm | Or Customized |
| Wall Thickness | 0.1mm/0.2mm/0.3mm | Or Customized |
| Core Thickness | 5-100mm | |
| Dimension | Customized | |
| Surface Treatment | Mill Finished / Nickel plating / Tin plating / Zinc plating / Chromium plating |
Quality & Documentation
Product-Specific Checks and Technical Documents
This compact section summarizes the checks and document support relevant to this product. It does not repeat the full quality-control process shown elsewhere on the website.
- ✓Incoming raw material documentation is checked before production.
- ✓Cell geometry, thickness, dimensions, and cutting quality are inspected during production.
- ✓Pre-shipment checks are completed according to the confirmed specification.
