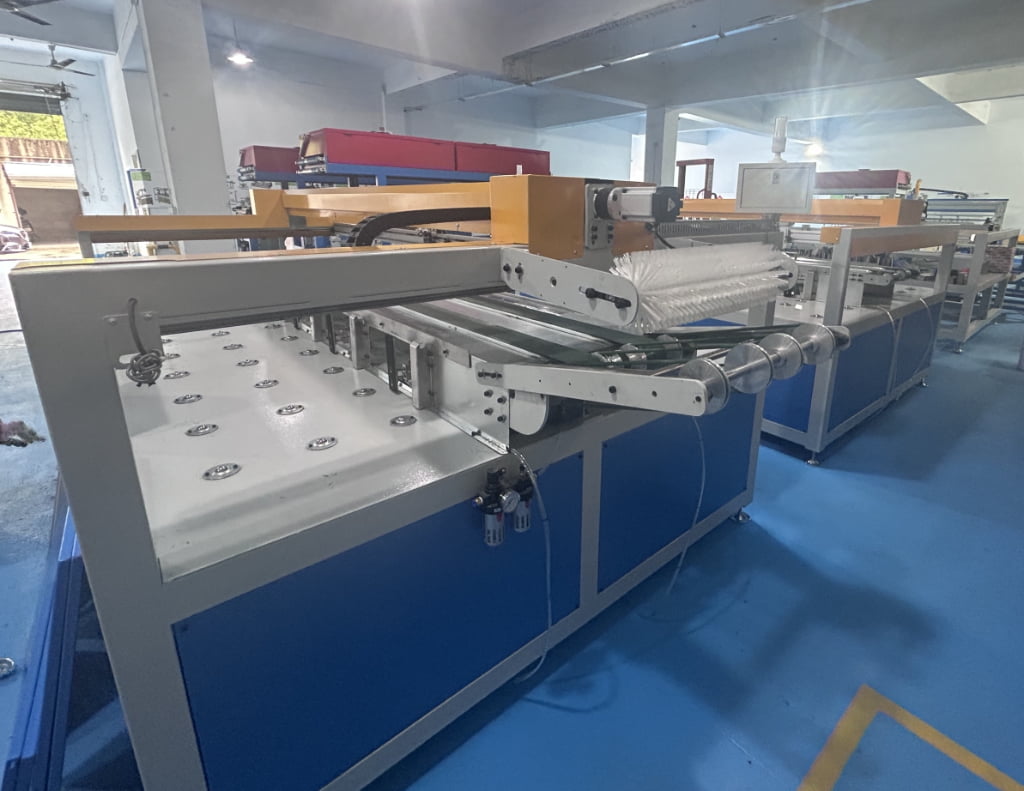

Aluminum Honeycomb Stacking Machine
The second step for making aluminum honeycomb.

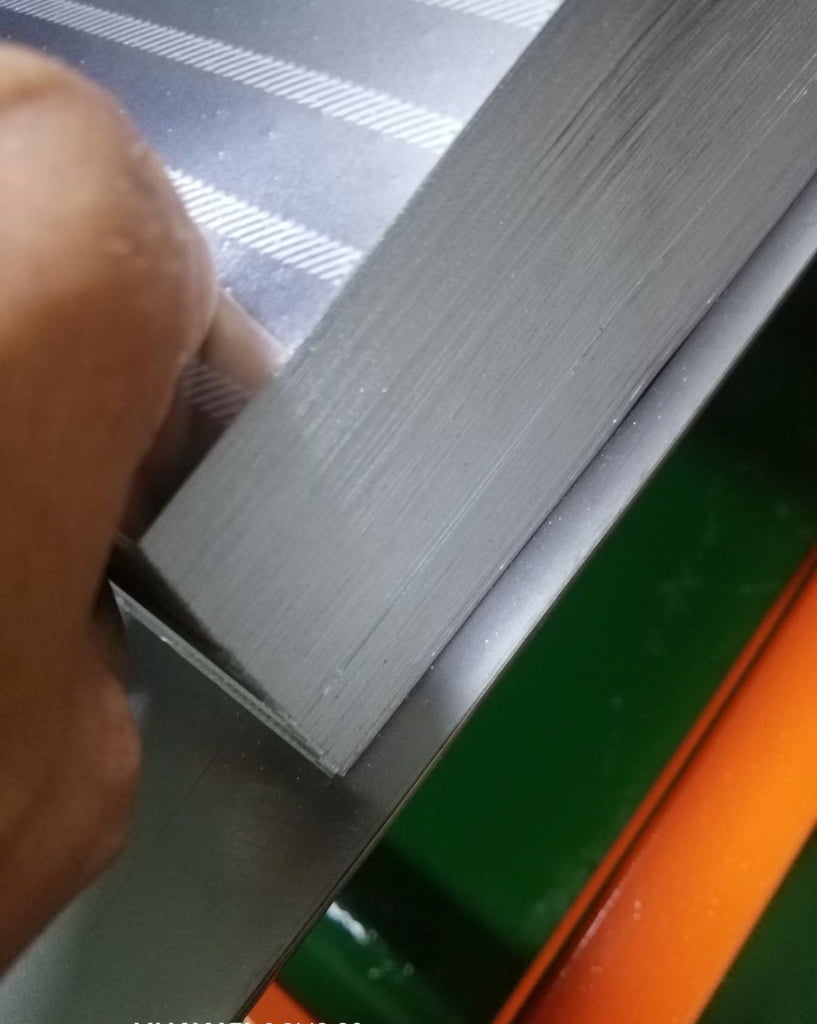

The Stacking Machine receives glued and cut aluminum foil sheets from the gluing process and stacks them layer by layer into aligned honeycomb blocks. Its main purpose is to keep each foil sheet accurately positioned before hot pressing. Good stacking accuracy is essential for producing stable honeycomb blocks, because misalignment at this stage may affect cell regularity, expansion quality, and the final appearance of the honeycomb core.
- Working Width
- 600mm
- Production Capacity
- 1.5Tons/Day
- Automation Level
- Automatic
- Power Requirement
- 1.5KW
Share your required working width, target capacity, and voltage for machine selection.
Technical Parameters
Final parameters are confirmed according to material type, working width, target capacity, electrical standard, and project configuration.
| Parameter | Value | Notes |
|---|---|---|
| Auto Type | Auto | |
| Foil Width | 300–600mm | |
| Cutting Length | 900–3000mm | |
| Maximum Stacking Height | ≤200mm | |
| Stacking Speed | ≤25 pcs/min | |
| Power Supply | customized | |
| Machine Dimension | 3500*2000*1000mm |
Equipment Workflow
Where This Equipment Fits in Your Production Process
This equipment is configured for its specific stage in honeycomb production and coordinated with the upstream and downstream process requirements.
Scope of Supply and Project Confirmation
The final equipment scope is confirmed in the quotation and technical agreement according to the project requirements.
Standard Supply
Machine configuration, control components, standard accessories, and included items are listed in the quotation.
Optional Configuration
Options are matched to material type, width, capacity, voltage, automation, and local operating requirements.
Acceptance & Documents
Technical parameters, test items, operating documents, and acceptance requirements are confirmed before delivery.
Packing & Delivery
Packing method, shipping conditions, destination information, and installation arrangements are confirmed by project.
Installation, Training and After-Sales Support
Technical Support

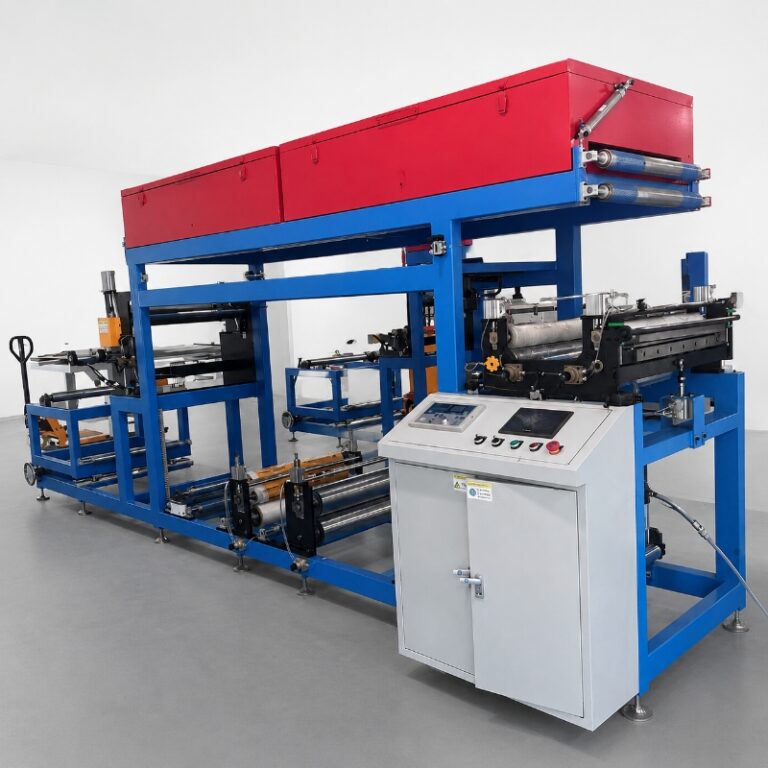

Related Honeycomb Equipment
Request Technical Information and a Quotation
Provide the project status, material type, target working width, required capacity, voltage, and destination. Mex-core will review the appropriate equipment configuration.
