Aluminum Honeycomb Press Machine
Hot Press for the blocks

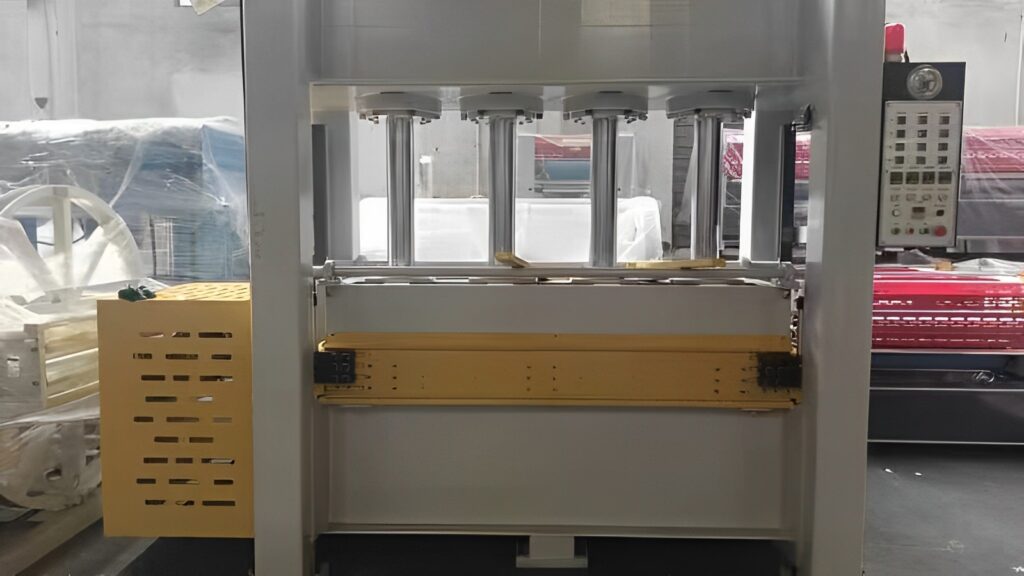

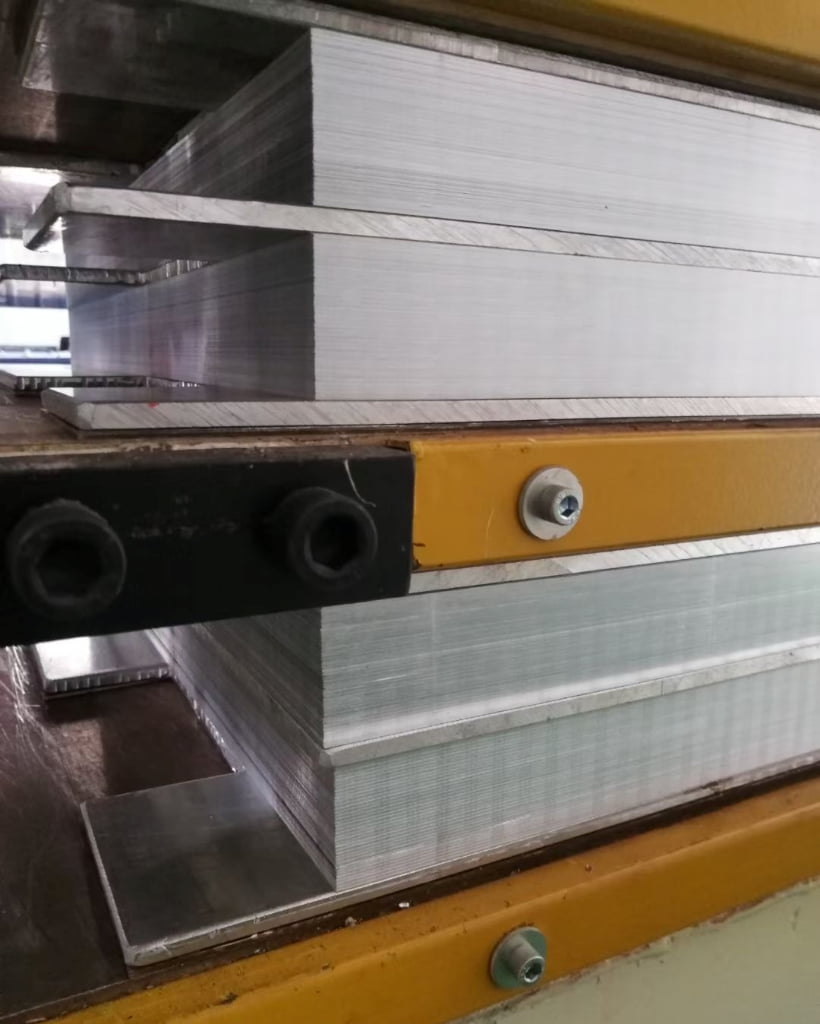

The tot press machine is used to cure and bond the stacked aluminum foil sheets into solid honeycomb blocks. Under controlled temperature, pressure, and pressing time, the adhesive layers are cured so that the block can be sawn and expanded in later processes. For honeycomb core production, uniform pressure, stable heating, and accurate platen flatness are important because they influence bonding strength, block stability, thickness consistency, and final expansion performance.
- Working Width
- 2.6m
- Production Capacity
- 3Tons/Day
- Automation Level
- Automatic
- Power Requirement
- 120KW
Share your required working width, target capacity, and voltage for machine selection.
Technical Parameters
Final parameters are confirmed according to material type, working width, target capacity, electrical standard, and project configuration.
| Parameter | Value | Notes |
|---|---|---|
| Working Layers | 2/3 layers | |
| Hot Platen Spacing | 200mm | |
| Maximum Pressure | 100T–300T | |
| Heating Power | 100KW | |
| Heating Method | Electric heating / oil heating system | |
| Power Supply | 380V or customized |
Equipment Workflow
Where This Equipment Fits in Your Production Process
This equipment is configured for its specific stage in honeycomb production and coordinated with the upstream and downstream process requirements.
Scope of Supply and Project Confirmation
The final equipment scope is confirmed in the quotation and technical agreement according to the project requirements.
Standard Supply
Machine configuration, control components, standard accessories, and included items are listed in the quotation.
Optional Configuration
Options are matched to material type, width, capacity, voltage, automation, and local operating requirements.
Acceptance & Documents
Technical parameters, test items, operating documents, and acceptance requirements are confirmed before delivery.
Packing & Delivery
Packing method, shipping conditions, destination information, and installation arrangements are confirmed by project.
Installation, Training and After-Sales Support
Technical Support
Related Honeycomb Equipment
Request Technical Information and a Quotation
Provide the project status, material type, target working width, required capacity, voltage, and destination. Mex-core will review the appropriate equipment configuration.
