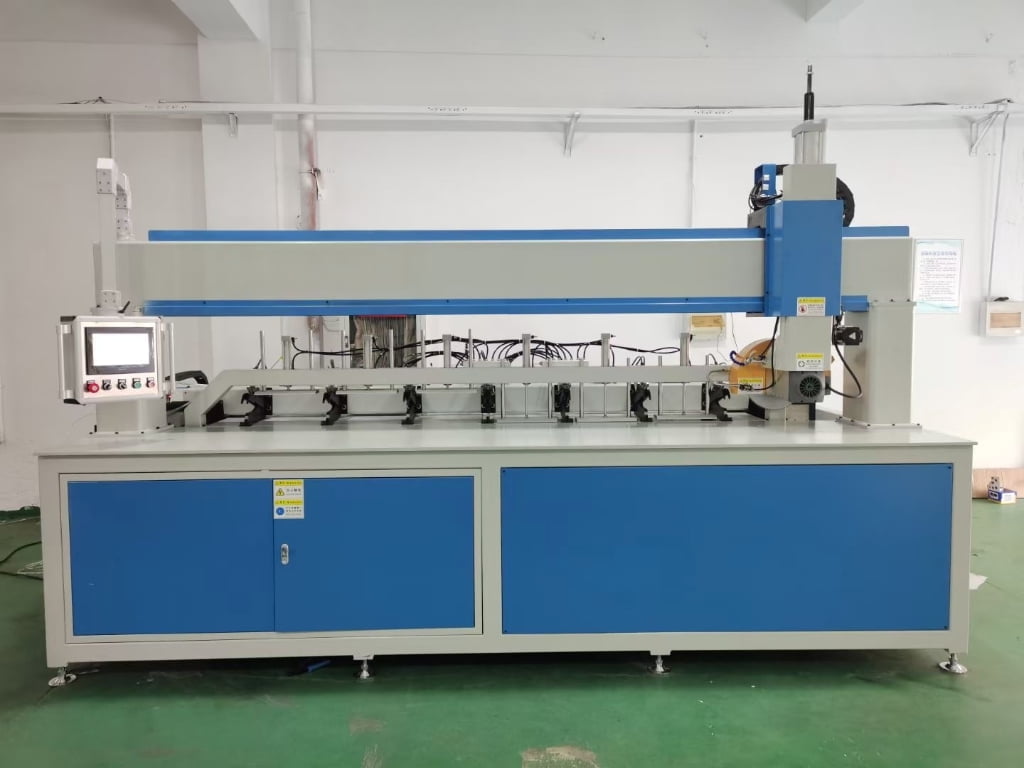

Aluminum Honeycomb Sawing Machine
Sawing into different thickness
The sawing machine cuts hot-pressed honeycomb blocks into slices, strips, with required core thicknesses. This process determines the final core thickness accuracy before expansion or panel production. For customers producing high-quality honeycomb cores, stable sawing, thickness control, and clean cutting surfaces are important for reducing material loss and improving downstream processing consistency.
- Working Width
- 2.8m
- Production Capacity
- 3Tons/Day
- Automation Level
- Automatic
- Power Requirement
- 3.5KW
Share your required working width, target capacity, and voltage for machine selection.
Technical Parameters
Final parameters are confirmed according to material type, working width, target capacity, electrical standard, and project configuration.
| Parameter | Value | Notes |
|---|---|---|
| Maximum Cutting Height | ≤500mm | |
| Cutting Tolerance | ±0.1mm | |
| Width | 600mm |
Equipment Workflow
Where This Equipment Fits in Your Production Process
This equipment is configured for its specific stage in honeycomb production and coordinated with the upstream and downstream process requirements.
Scope of Supply and Project Confirmation
The final equipment scope is confirmed in the quotation and technical agreement according to the project requirements.
Standard Supply
Machine configuration, control components, standard accessories, and included items are listed in the quotation.
Optional Configuration
Options are matched to material type, width, capacity, voltage, automation, and local operating requirements.
Acceptance & Documents
Technical parameters, test items, operating documents, and acceptance requirements are confirmed before delivery.
Packing & Delivery
Packing method, shipping conditions, destination information, and installation arrangements are confirmed by project.
Installation, Training and After-Sales Support
Installation & Training
Technical Support
After-Sales & Spare Parts
Remote troubleshooting and spare-parts requirements are reviewed according to the machine model and operating condition.
Related Honeycomb Equipment
Request Technical Information and a Quotation
Provide the project status, material type, target working width, required capacity, voltage, and destination. Mex-core will review the appropriate equipment configuration.
