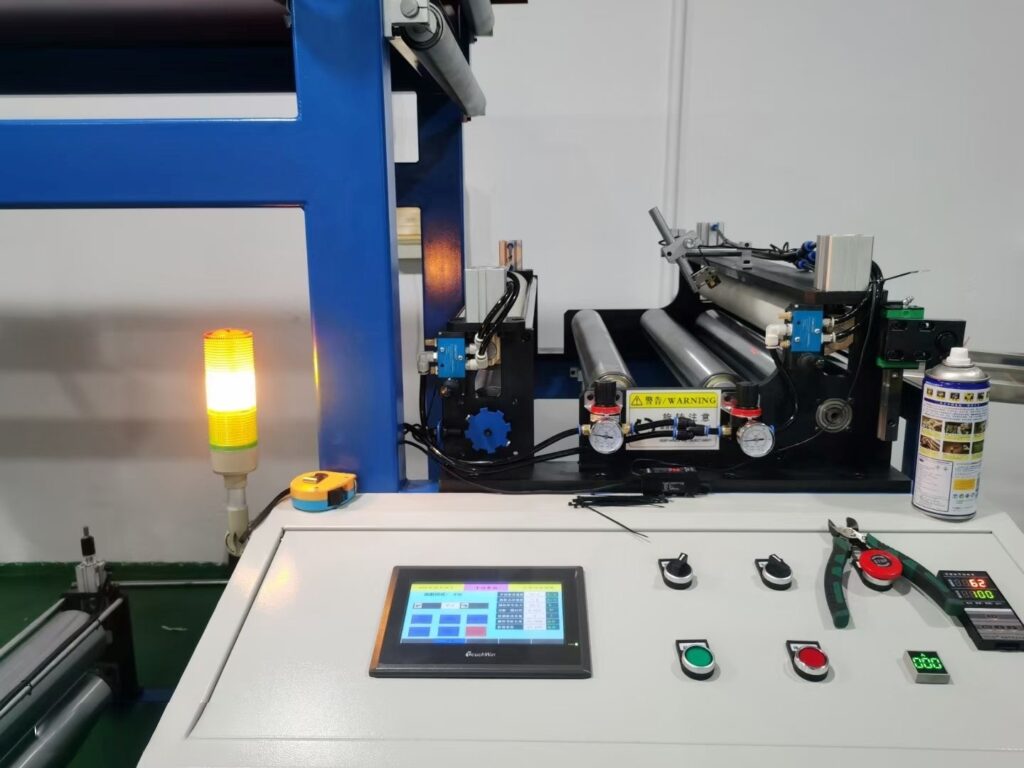

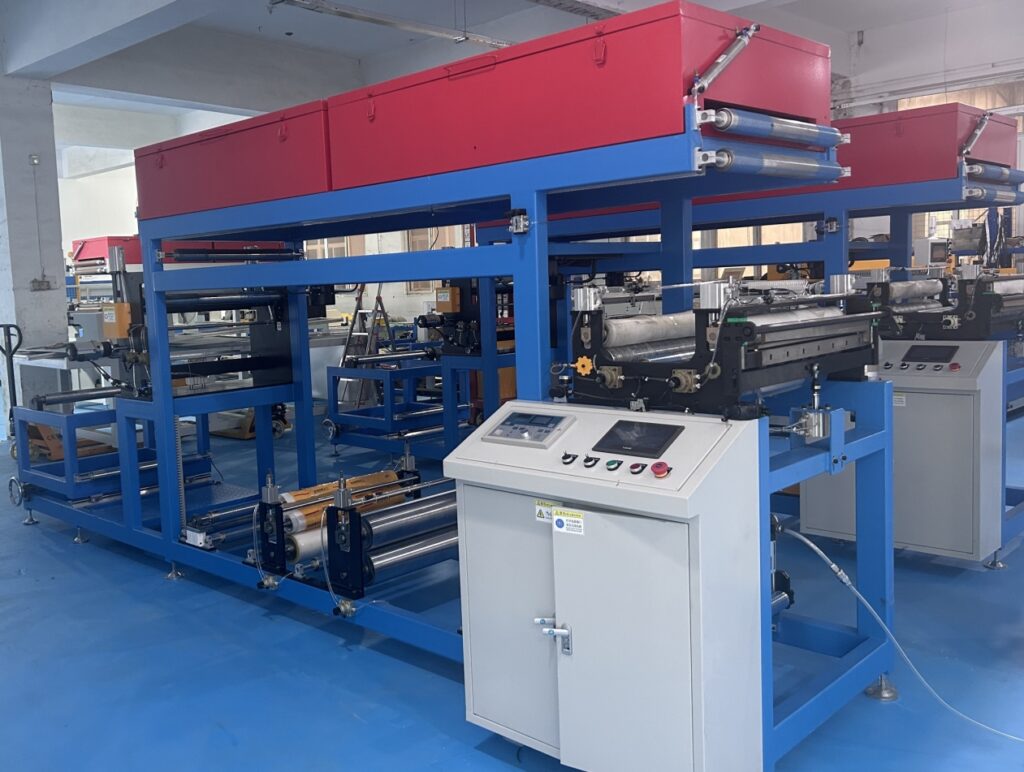

Aluminum Honeycomb Gluing Machine
The first step for producing aluminum honeycoomb.

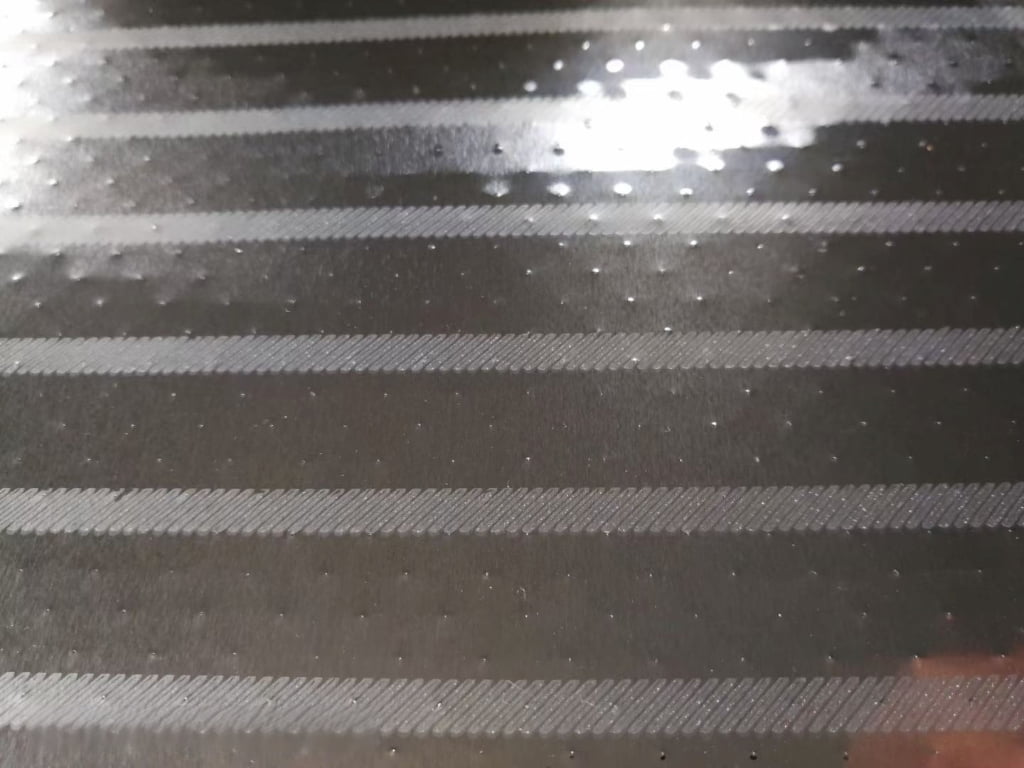

The Gluing Machine is used in the first key stage of aluminum honeycomb core production. It applies adhesive lines to aluminum foil according to the required honeycomb cell size, then dries and cuts the foil into sheets for the subsequent stacking process. Stable adhesive transfer, accurate foil feeding, controlled drying, and precise cutting are critical at this stage, as they directly affect stacking accuracy, bonding strength, and the cell geometry of the finished honeycomb core. With the appropriate material-feeding and process configuration, the machine can also be used for aramid honeycomb core production.
- Working Width
- 600mm
- Production Capacity
- 1
- Automation Level
- Automatic
- Power Requirement
- 12KW
Share your required working width, target capacity, and voltage for machine selection.
Technical Parameters
Final parameters are confirmed according to material type, working width, target capacity, electrical standard, and project configuration.
| Parameter | Value | Notes |
|---|---|---|
| Gluing Width | 600mm | |
| Gluing Speed | ≤50m/min | |
| Oven Temperature | Room temperature to 180°C | |
| Applicable Foil Thickness | 0.035mm–0.1mm | |
| Minimum Cell Size | ≥3.2mm | |
| Cutting Precision | ±0.2mm |
Equipment Workflow
Where This Equipment Fits in Your Production Process
This equipment is configured for its specific stage in honeycomb production and coordinated with the upstream and downstream process requirements.
Scope of Supply and Project Confirmation
The final equipment scope is confirmed in the quotation and technical agreement according to the project requirements.
Standard Supply
Machine configuration, control components, standard accessories, and included items are listed in the quotation.
Optional Configuration
Options are matched to material type, width, capacity, voltage, automation, and local operating requirements.
Acceptance & Documents
Technical parameters, test items, operating documents, and acceptance requirements are confirmed before delivery.
Packing & Delivery
Packing method, shipping conditions, destination information, and installation arrangements are confirmed by project.
Installation, Training and After-Sales Support
Technical Support
