Honeycomb Core

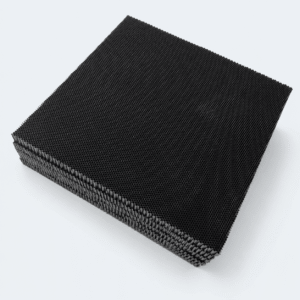

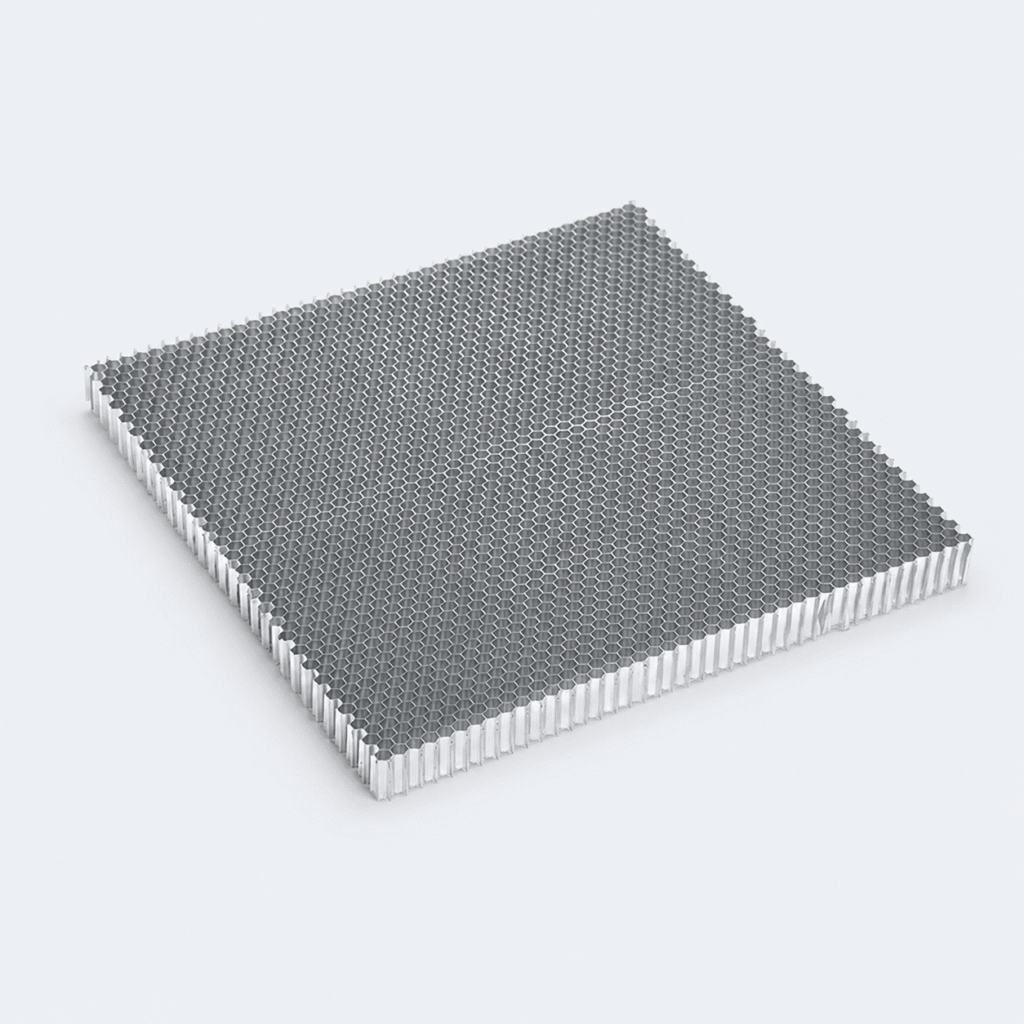

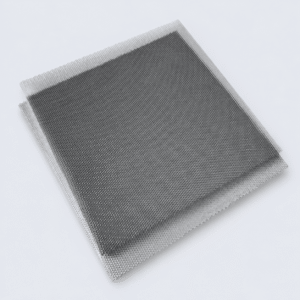

Micro-cell Aluminum Honeycomb Core
Micro-cell aluminum honeycomb core is a precision aluminum honeycomb material with smaller cell size, stable geometry, and lightweight structural performance. It is suitable for airflow control, light control, filtration support, EMI shielding, and compact industrial applications. Cut-to-size processing is available within standard dimensions.
For Project Evaluation
Send the required dimensions, quantity, application, and drawings. Our team will review material selection, processing feasibility, and quotation details.
Key Features
Stable Geometry, Flexible Specifications, Reliable Processing
- Stable and uniform cell geometry
- Lightweight core with good structural rigidity
- Suitable for precision airflow and light control applications
- Applicable for filtration, shielding, and compact structural use
Technical Data
Honeycomb Core Specifications
Review the available material, cell, thickness, density, dimensional, and supply-form parameters for this honeycomb core.
| Parameter | Value | Note |
|---|---|---|
| Product Form | Honeycomb Core | Product category |
| Material Specification Set | Aluminum Honeycomb Core | Core material family |
| Supply Form | Sheet | Available according to order requirements |
| Alloy Type | 3003 | |
| Cell Size | 1/30''(0.87mm) 1/25''(1.04mm) 1/18''(1.38mm) 1/15''(1.73mm) 1/10''(2.6mm) 1/8''(3.2mm) | |
| Foil Thickness | 0.025mm~0.08mm | |
| Cutting Tolerance | ±0.1mm | |
| Thickness | 3-20mm | |
| Dimension | Customized |
Quality & Documentation
Product-Specific Checks and Technical Documents
This compact section summarizes the checks and document support relevant to this product. It does not repeat the full quality-control process shown elsewhere on the website.
- ✓Incoming raw material documentation is checked before production.
- ✓Cell geometry, thickness, dimensions, and cutting quality are inspected during production.
- ✓Pre-shipment checks are completed according to the confirmed specification.
Related Applications
Application Areas
Related Products
Explore Related Honeycomb Materials
Inquiry Support
Request a Quote for Micro-cell Aluminum Honeycomb Core
Send your specifications, dimensions, quantity, application, and destination. Mex-core will review material selection, processing feasibility, and quotation requirements.
- Cell Size
- Foil Thickness
- Dimension
