Aluminum Honeycomb Panel
Aluminum honeycomb panel is a lightweight composite panel made with aluminum face sheets and aluminum honeycomb core. It provides good flatness, high strength-to-weight ratio, and stable structural performance for architectural panels, transportation interiors, marine panels, and other industrial applications. Mex-core can support panel structure selection, core specification matching, and cut-to-size processing according to project requirements.
- Panel Structure
- Top Aluminum Face Sheet Adhesive Layer Aluminum Honeycomb Core Adhesive Layer Bottom Aluminum Face…
- Alloy Type
- 1100/3003/5052
- Skin Thickness
- 0.5mm/0.6mm/0.8mm/1.0mm/1.2mm
- Height
- 5mm/10mm/15mm/20mm
Key Features
Panel Structure, Surface Options, and Project-Based Processing
- Lightweight honeycomb sandwich structure
- High flatwise compressive strength
- Good fire-resistant performance
- Moisture-resistant and corrosion-resistant structure
- Excellent flatness and dimensional stability
- High rigidity with low panel weight
Technical Data
Honeycomb Panel Specifications
Review panel structure, face sheet, overall thickness, dimensions, bonding, and other project-specific parameters.
| Parameter | Value | Note |
|---|---|---|
| Product Form | Honeycomb Composite Panel | Product category |

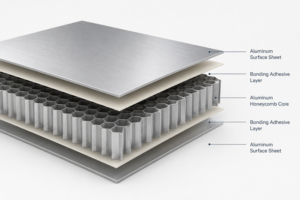

| Panel Structure | Top Aluminum Face Sheet<br /> Adhesive Layer<br /> Aluminum Honeycomb Core<br /> Adhesive Layer<br /> Bottom Aluminum Face Sheet | Composite configuration |
| Alloy Type | 1100/3003/5052 | |
| Skin Thickness | 0.5mm/0.6mm/0.8mm/1.0mm/1.2mm | Or Customized |
| Height | 5mm/10mm/15mm/20mm | Or Customized |
| Dimension | 1220*2440mm | Or Customized |
| Surface Treatment | Mill finish / PE /PVDF | Or Customized |
| Edge | Open edge / sealed edge / framed edge |
Quality & Documentation
Product-Specific Checks and Technical Documents
This compact section summarizes the checks and document support relevant to this product. It does not repeat the full quality-control process shown elsewhere on the website.
- ✓Core, face sheet, and bonding materials are checked against the confirmed panel structure.
- ✓Panel thickness, dimensions, surface condition, and flatness are inspected before shipment.
- ✓Project documents and inspection information are supplied according to order requirements.

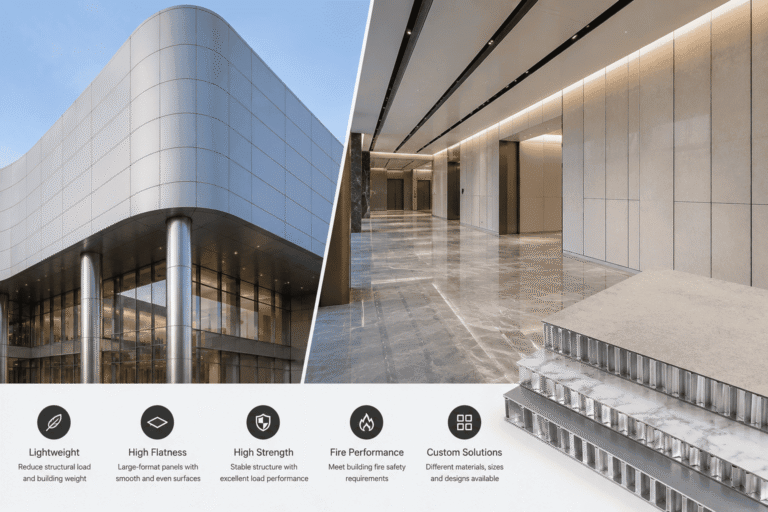

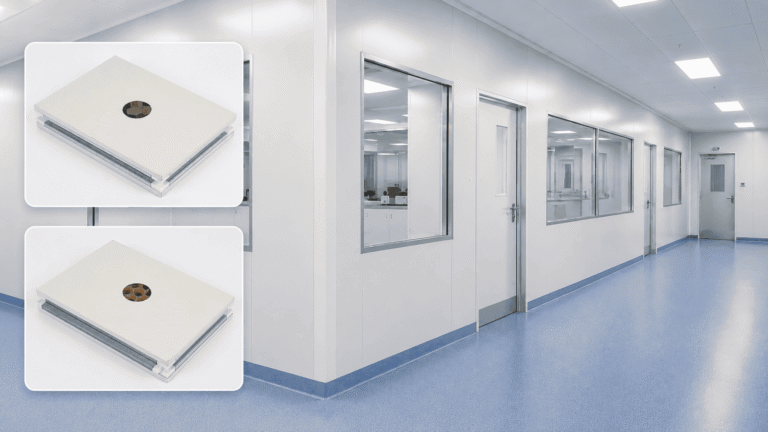

Related Applications
Application Areas
Related Products
Explore Related Core Materials and Panels
Inquiry Support
Request a Quote for Aluminum Honeycomb Panel
Send the relevant specifications, drawings, quantity, application, and destination. Mex-core will review material selection, processing feasibility, and quotation requirements.
- Dimension
- Skin Thickness
- Surface Treatment
